Electric Anchor Windlass
Description

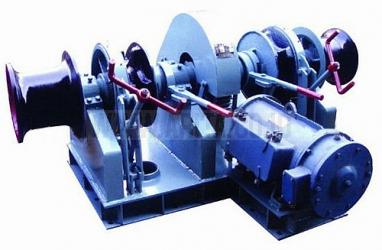

Electric Anchor Windlass
LORI can supply you different anchor windlass, According to different power source,marine anchor windlass can be sorted into electric anchor windlass and hydraulic anchor windlass.
According to different structure types, there are single anchor windlass, symmetrical anchor windlass and anchor-mooring combined type anchor windlass.
These series windlass has features of compact in construction, excellent of property, safe and reliable, easy in operation, long use in service.
CCS,ABS,BV,GL,,LR,DNV,RINA,NK and other Classification Certificates are available.
Customers provide us chain diameter(up to 50mm).
Electric anchor windlass parts: Electric windlass, marine control box, marine master controller .
Documents provided: factory product certificate, motor classification society certificate, motor user manual, windlass user manual, assembly drawing, base installation drawing and marine control box documents.
Electric Anchor Windlass Technical Data:
| Chain Dia. (mm) | Working load (KN) | Anchor weight (kg) | Working speed (m/min) | Dropping depth (m) | Motor power (KW) |
| 12.5/14 | 6.6/8.3 | 200 | 14 | 45 | 3/1.2 |
| 15/17 | 9.75/12.5 | 300 | 12 | 45 | 4.7/1.7 |
| 19/22 | 15.3/20.6 | 660 | 12 | 82.5 | 8.5/3.5 |
| 24/26 | 25/29.3 | 900 | 10.5 | 82.5 | 8.5/3.5 |
| 25/28 | 26.6/33.3 | 1000 | 9 | 82.5 | 11/7.5 |
| 28/30 | 33.3/38.3 | 1140 | 9 | 82.5 | 11/7.5 |
| 31/34 | 41.7/49.1 | 1500 | 9 | 82.5 | 16/11 |
| 32/34/36 | 43.5/49.1/55.1 | 1600 | 9 | 82.5 | 16/11 |
| 37/40 | 58.3/68 | 2250 | 9 | 82.5 | 22/16 |
| 42/44/46 | 75/82.3/89.9 | 3000 | 9 | 82.5 | 30/30/22 |
| 48 | 97.9 | 3500 | 9 | 82.5 | 30 |
